| Model |

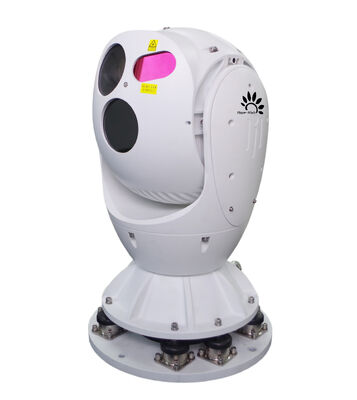

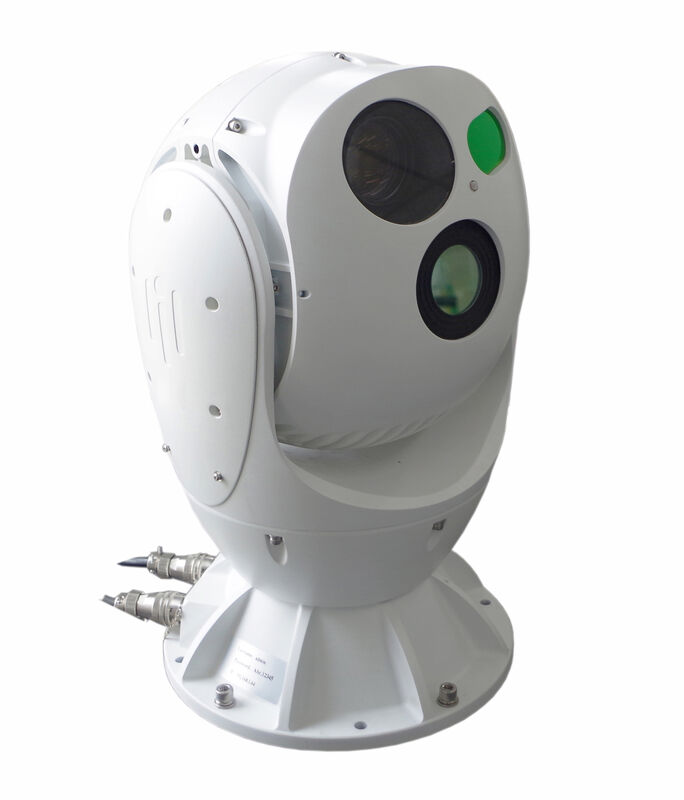

HP-ZS20GIS-CTVC63030-2132-LRF6K |
| Rotation range |
1. Pan: N × 360 ° continuous rotation
2. Tilt: -45 ° ～ + 90 °
3. Limit: The pitch has a soft limit function, the program can be set
|
| Spinning speed |
1. Horizontal speed: 0.1 ° ～ 80 ° / s
2. Pitching speed: 0.1 ° ～ 80 ° / s
3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2
4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage
|
| Positioning accuracy |
Positioning accuracy: up to 0.02 °, high-frequency fine-tuning pulse precision motor drive, digital angle sensor servo |
| Turntable zero position |
1.Zero setting: support the setting of pan and pitch zero |
| Stability accuracy |
2mrad (RMS), two-axis gyro stable |
| Cruise scan |
1. Preset position: no less than 255
2. Path scan: support preset point cruise, line scan, scan speed can be set
3. Watch function: support watch preset, line scan and cruise
|
| Data return |
1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function
2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles
|
| Tracking mode |
1. Support manual control tracking
2. Support radar linkage automatic tracking
3. Support front-end module automatic tracking (optional)
4. Support automatic tracking of back-end software
|
| Enhancement |
1. Motor protection: turntable blocking protection, high reliability
2. Fault detection: support power-on self-check, status query and fault code feedback
3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance
|
| Electrical Interface |
1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control)
2. Power source: 1 way DC24V
3. Physical interface: military-grade aviation waterproof plug, protection grade IP67
|
| Protocol |
1. Network protocol: support TCP / IP, UDP, IPv4 / v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol
2. PTZ control protocol: Pelco-D industry standard and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol
|
| Environmental index |
1. Working temperature: -25 ℃ ～ + 60 ℃
2. Storage temperature: -30 ℃ ～ + 70 ℃
3. Humidity: <95% RH
4. Anti-lightning surge: power supply 4000V, communication video signal 2000V
5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally
6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements
7. Protection level: IP67
|
| Machine power supply |
1. Power supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V
2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W
|
| Volume and weight |
- Dimension:Ф280mm×430mm
- Weight:≤18kg
|
| Cameras |
| Visible Camera |
1. Detector: 1/3 "low illumination CMOS
2. Resolution: 1920 × 1080 (2 MP)
3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON), black and white 0.0002Lux ＠ (F1.2, AGC ON)
4. Lens focal length: 8 ～ 320mm continuous zoom
5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km.
6. Lens control: electric zoom, manual / auto focus
7. Interface and video format: IP network output, H.265 / H.264
|
| Cooled Thermal Camera |
1. Detector: Cooled Mercury Cadmium Telluride (MCT) infrared focal plane
2. Spectral range: 3μm ～ 5μm
3. Resolution: 640 × 512
4. Pixel size: 15μm
5. Temperature sensitivity (NETD): better than 15mk (@ F4.0, 25 oC)
6. Lens focal length: 30 ～ 300mm continuous zoom
7. Action distance: when the atmospheric visibility is greater than 10km, the air humidity is less than 50%, and the target and background temperature difference is greater than 5K, the action distance to small ships or islands and reefs can reach 8km.
8. Focusing mode: manual / automatic focusing (automatic focusing supports zoom trigger, lens temperature trigger, scene detection trigger)
9. Electronic zoom: 2X, 4X, support global synchronous display
10. Polarity: hot white, hot black and 16 kinds of false colors, support multi-configuration scene mode
11. Correction: automatic / manual / background correction
12. Image adjustment: brightness, contrast, AGC automatic control
13. Image enhancement: SDE digital detail enhancement function
14. Strong heat source protection: support
15. Starting time: ≤7min (under normal temperature)
|
| Laser Ranging |
1. Wavelength: 1570nm
2. Measuring range: 100 ～ 6000m
3. Ranging accuracy: ± 3m
4. Repetition frequency: 0.2Hz
5. Control: RS422
|
| Recommended configuration of monitoring workstation |
|
Host configuration
(Recommended only, provided by user)
|
CPU: 6 cores (i7 8700 and above)
Memory: 16GB or more
Hard Disk: 1TB SATA
Display: resolution 1920 * 1080
Network: LAN or 100M Ethernet
System: Windows 7 or Windows 10
Database: MySQL 5.1 and above
Other: Windows SDK, MFC bottom support library
Power supply; keyboard, mouse, etc.
|
