1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring

Сертификация
Китай Jinan Hope-Wish Photoelectronic Technology Co., Ltd. Сертификаты
Китай Jinan Hope-Wish Photoelectronic Technology Co., Ltd. Сертификаты
Просмотрения клиента
1. уловите похитителей крадя пока уменьшающ число и цену предохранителей. 2. мы имеем камеру сверх-наблюдения и видим деталь ясно вечером

—— Кристиан

Я могу увидеть если предохранители спят. Он имеет большущее влияние в держать их бодрствующим и делать их работу а не выходящ их столбы к болтовне

—— Ричард

Оставьте нам сообщение

1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring

1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring
1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring

Большие изображения :  1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring

Подробная информация о продукте:
Place of Origin: China
Фирменное наименование: Hope-Wish
Сертификация: CE, FCC, ROHS, ISO9001
Номер модели: HP --HTVC6519-2150
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: negotiable
Упаковывая детали: деревянный ящик
Время доставки: 60-180
Условия оплаты: LC, D/A, D/P, Western Union, MoneyGram
Поставка способности: 50 единиц в месяц

1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring

описание
Масса: 15 кг Диапазон обнаружения: 5-10км
Температурный диапазон: от -40°С до +70°С Наклон: -45 ° + 90 °
Кастрюля: N × 360 ° непрерывное вращение Спектральный диапазон: 7.5μm до 14μm
Разрешение: 640x512 пикселей Минимальное расстояние фокуса: 1,5 м
NETD: 25mK Группа: 3,7 ~ 4,8 мкм
Возможности подключения: Wi-Fi и USB ИК разрешение: 640x512
Рабочая температура: -40 ℃ ~+60 ℃ Диапазон обнаружения: До 2000 метров
наклон лотка: 360 Материал: снабжение жилищем алюминиевого сплава, водоустойчивое
Влажность: 5%~95% неконденсирующийся Коммуникация: RS422
Рабочая температура: от -20°С до 55°С Проникновение тумана: Оптическая фильтрация
Выделить:

1920x1080 PTZ thermal camera

,

long distance dual sensor thermal camera

,

security monitoring thermal camera

Product Description:

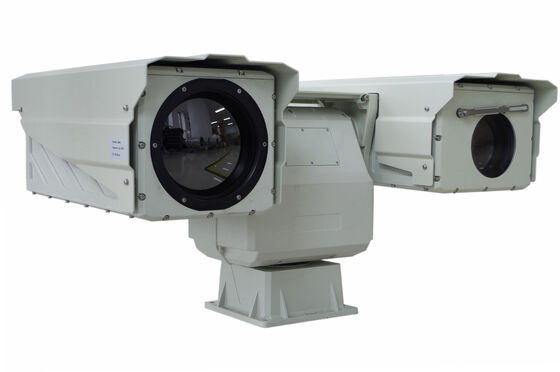

The Long Range Thermal Camera is an advanced PTZ thermal imaging camera designed to deliver exceptional performance in long-distance detection and surveillance applications. Equipped with a high-precision PTZ thermal sensor, this Long-Distance Thermal Camera offers unparalleled imaging capabilities, making it an ideal solution for security, border patrol, search and rescue, and industrial monitoring where clear thermal imaging over extended ranges is crucial.



HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 384*288/640*512 /1280*1024 uncooled thermal camera with large caliber.

In combination with 360-degree PT, the camera is capable of conducting 24 hours real-time monitoring within 1km-20km.

With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates,which ensures camera´s normal operation under tough weather conditions.



Technical Parameters:

Model HP-HTVC6519-2150
Detection Vehicle: 16km;Human:5.8km
Identification Vehicle:4.2km;Human: 1.6km
Thermal sensor

VOx uncooled detector, 640*512 resolution for option

7.5um-14um spectral response, 45mk NETD

Thermal lens

38mm~190mm,



5X continuous zoom, auto focus
64X digital zoom
Image process

1. Image enhancement: SDE digital image enhancement technology to enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2×, 4×, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Enhancement

1.Protection from strong light, Sunburn protection

2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature

3. Scene mode: support multi-configuration scene, adapt to different environment application

Intelligent Analysic

1.Intrusion detection;

2.Fire Alarm/Hot Alarm

3. Ranging Scale;

4.Support Auto Track (together with software)

Visible Camera sensor 1/1.8'' CMOS
0.0002lux super high sensitive color to B/W CCD
2.1 MP resolution
Automatic ICR switch
H.264/MPEG4/MIPEG
32Kbps~16Mbps,60Hz30 FPS
Visible Camera lens

8mm~500mm



62X zoom
Auto focus
2MP full HD resolution

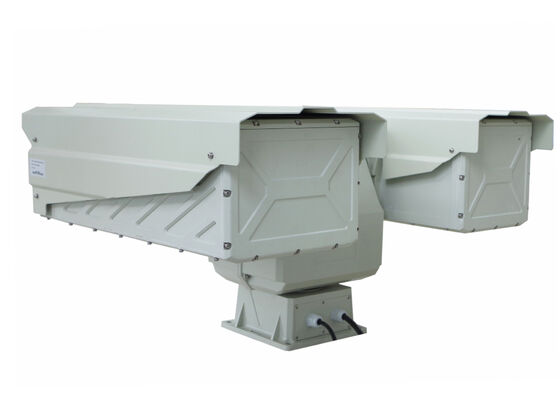

Housing Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
Structure:Integrated multi-window design
Surface coating:PTA three-resistance coating, Seawater corrosion resistance
Built-in thermostat, design of thermal equilibrium
Interface:Aviation waterproof plug
PTZ Load:50kg
Pan: 0~360°, Tilt: +45°~-45°
Speed:Pan: 0.01~30°/S, Tilt: 0.01~15°/S
Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function
Interface RJ45 Interface
Video format H.264, Dual video output
Protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol
Support ONVIF2.0
Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional
Power supply AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply
Environment
  • Operating temperature:-35℃~+60℃(-45℃ optional);Storage temperature:-40℃(-50℃ optional)~+65℃
  • Humidity:<90%
  • Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V
  • Ingress protection:IP66

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 01920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 1
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
1920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 21920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 31920x1080 Resolution Long Distance Dual Sensor PTZ Thermal Camera for Security Monitoring 4
